CJ Series Hydraulic Punching Machine
CNC hydraulic punching machine is mainly used for processing connecting plates in transmission and transformation towers, communication towers or steel structures, as well as punching and stamping flat materials in other mechanical industries.
Punching
Stamping
Flat piece-Power tower
★CJ Series CNC hydraulic punching machine mainly used for punching, typing processes of flat workpieces in the production of metal components.

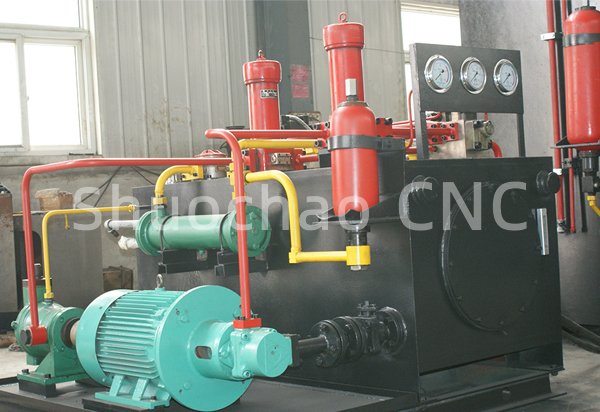

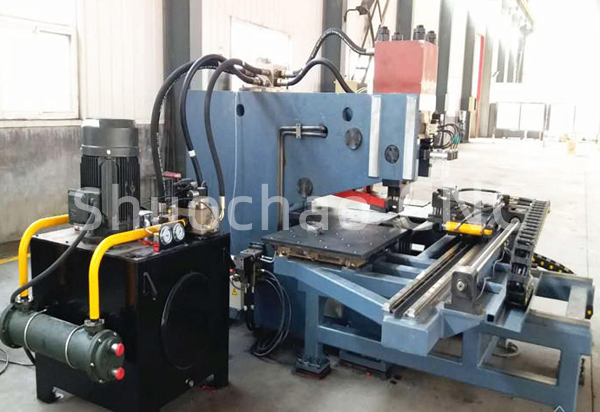

★The equipment has an independent hydraulic power system and electrical numerical control system with centralized control.

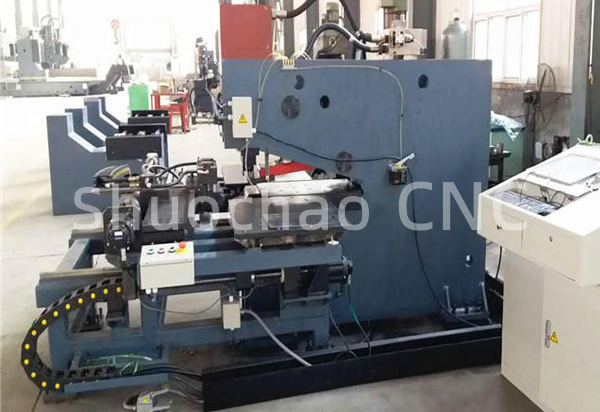

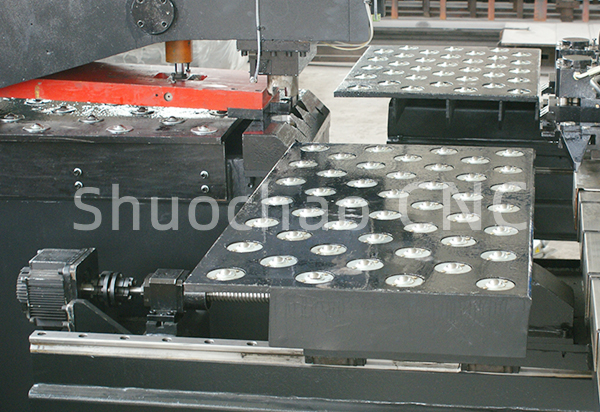

★The main machine is equipped with 2-axis CNC feeding workbench, the workpiece can be accurately positioned at any position within the working area to complete the punching, typing and drilling functions.
★Easy loading and unloading of molds and accurate positioning greatly shorten the work stopping time and mold adjustment time, improve the working efficiency and expand the application range of this equipment.

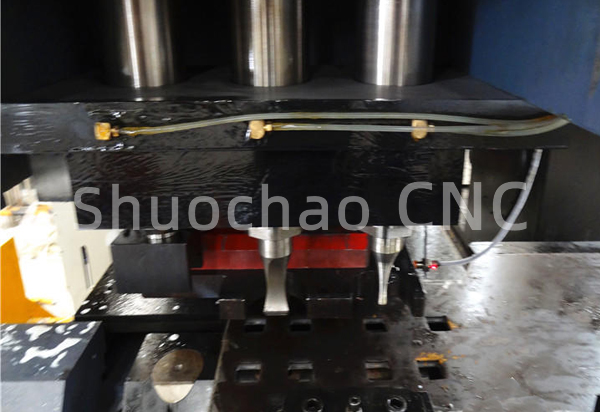

★The CJ series equipment is equipped with one typing station and two punching stations, achieving processing of multiple varieties and apertures.
| Model | CJ100 | CJ110 | CJ120 | CJ150 | Unit |
| Maximum workpiece size | 1500×800 | 1500×800 | 1500×1000 | 1500×800 | mm |
| Workpiece thickness range | 5—25 | 5—25 | 5—30 | 5—25 | mm |
| Maximum punching force | 1000 | 1100 | 1200 | 1500 | kN |
| Maximum typing force | 800 | 1000 | 1000 | 1000 | kN |
| Maximum punching diameter | Φ26 | Φ26 | Φ26 | Φ32 | mm |
| Minimum hole margin | 25 | 25 | 25 | 25 | mm |
| Electrical system | Mitsubishi PLC | ||||
